How To Insert Data Into InfluxDB Using Java

InfluxDB is a time series database designed to handle high write and query loads. It is an essential time series toolkit — dashboards, queries, tasks and agents all in one place.  It comes with it’s own set of plugins to create dashoards.

InfluxDB empowers developers to build IoT, analytics and monitoring software. It is purpose-built to handle the massive volumes and countless sources of time-stamped data produced by sensors, applications and infrastructure.

1. Set up InfluxDB with Docker

The easiest way to get started with InfluxDB is with docker. If you’re working on Windows, you can install Docker Desktop. If you’re on Linux, you can install the Docker Engine.

Run the below command to pull the latest Docker image of InfluxDB.

docker pull influxdb

Once you have pulled the image, run the below command to start a container.

docker run -p 8086:8086 -v myInfluxVolume:/var/lib/influxdb2 influxdb:latest

You can then run the below command to check if the process is running.

$ docker ps -a
CONTAINER ID   IMAGE             COMMAND                  CREATED          STATUS                        PORTS                    NAMES
7106352d956d   influxdb:latest   "/entrypoint.sh infl…"   45 minutes ago   Up 45 minutes                 0.0.0.0:8086->8086/tcp   eloquent_shaw

Open http://localhost:8086 on your browser and you should be able see the InfluxDB portal.

2. Create a bucket & generate API token

Once the process is up and running, you can create a bucket where you can display the data.

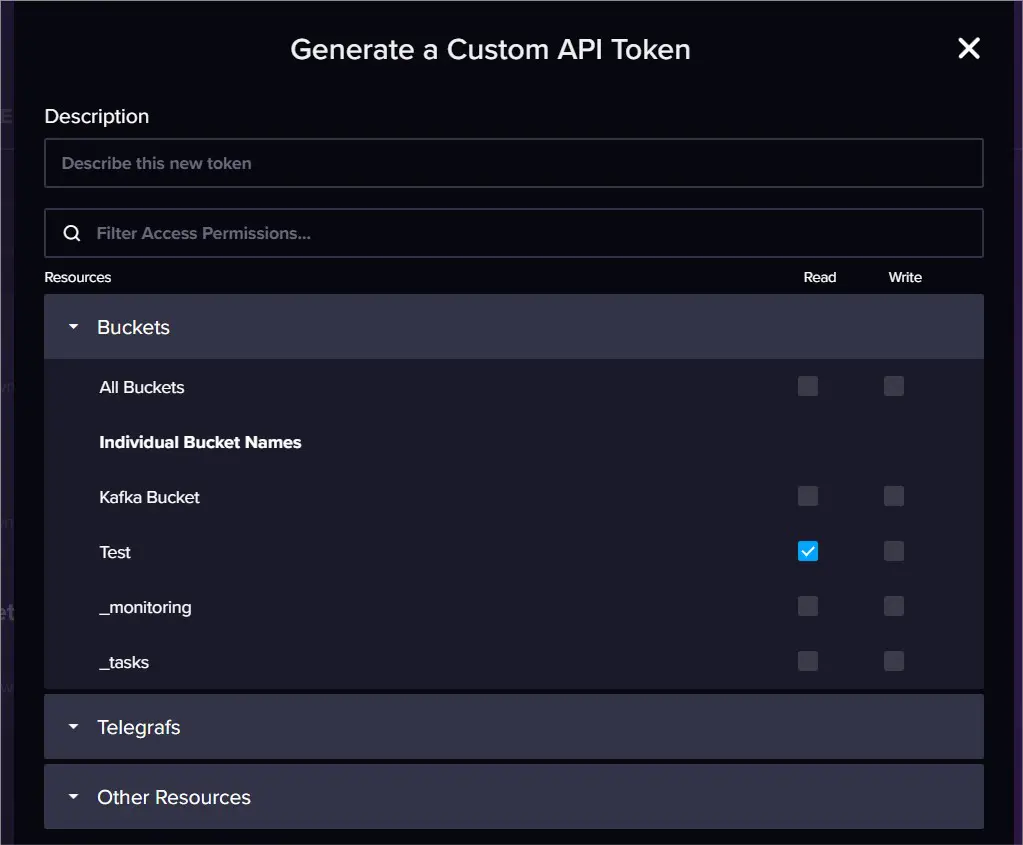

Once bucket is created, you will need to generate an API token which you can use to connect to InfluxDB. You have the option of creating an administrative token or a custom API token. An administrative token gives you all the privileges whereas a custom token only gives you specific privileges.

3. Java code to write data into InfluxDB

Before you write the code, make sure to have the below library added to your build. If you’re using Maven, you can use the below dependency.

<dependency>
   <groupId>com.influxdb</groupId>
   <artifactId>influxdb-client-java</artifactId>
   <version>6.6.0</version>
</dependency>

Below is the code you can use to insert sample date.

import java.time.Instant;
import com.influxdb.client.InfluxDBClient;
import com.influxdb.client.InfluxDBClientFactory;
import com.influxdb.client.WriteApiBlocking;
import com.influxdb.client.domain.WritePrecision;
import com.influxdb.client.write.Point;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

public class App {
	@SuppressWarnings("unused")
	private static final Logger LOGGER = LoggerFactory.getLogger(App.class);

	public static void main(String[] args) {
		String token = "<<INFLUX_TOKEN>>";
		String bucket = "Test";
		String org = "Test";

		InfluxDBClient client = InfluxDBClientFactory.create("http://localhost:8086", token.toCharArray());

		try {
			for (int i = 0; i < 10; i++) {
				Point point = Point.measurement("mem")
						.addTag("host", "host" + i)
						.addField("used_percent", Math.random()).time(Instant.now(), WritePrecision.NS);

				WriteApiBlocking writeApi = client.getWriteApiBlocking();
				writeApi.writePoint(bucket, org, point);
			}
		} catch (Exception e) {
			LOGGER.debug("Error occurred -----> " + e.getMessage());
		} finally {
			client.close();
		}
	}
}

4. View the data

Once you have run the code, you can open the bucket you have created and filter the data.

Once you have verified the data, you can tweak the code as per your requirement. You can also check out some of the other languages it supports using which you can insert data.
